Ratcheting Torque Wrenches

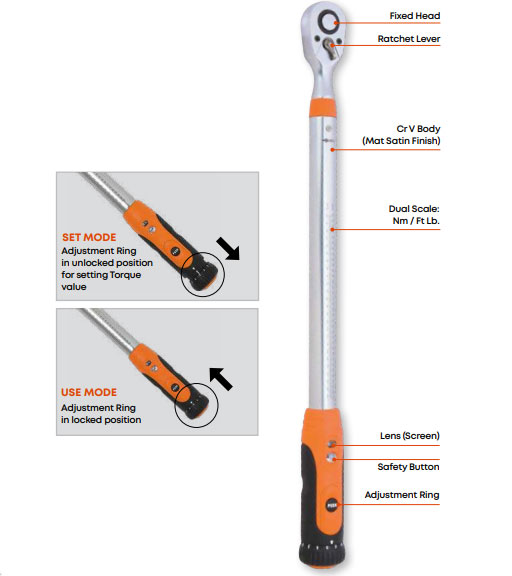

High Accuracy Torque Wrench with unmatched safety & accuracy 48 teeth ratchet for an engagement angle of 7-1/2°. Ideal for both precise adjustment & non slip use Chrome-Molybdenum alloy Steel Square Drive Fully secure locking mechanism avoids accidental/forced adjustment To tighten move torque wrench in clockwise direction. Reversing the ratchet allows the wrench to be used for loosening nuts & fasteners Clearly audible click sound on reaching the required torque Comes with calibration certificate Fully serviceable, repair kits available as spare.
Accurate to ± 4%.
| CAT NR. | Square Drive (Inch) | Torque Range (NM) | Fine Scale (NM) | Overall Length (Inch) | Overall Length (MM) | Net Wt. (KGS) | Box Qty. |
|---|---|---|---|---|---|---|---|
| TQW/RT/3-8/25 | 3/8 | 5–25 | 0.1 | 12.7 | 323 | 0.765 | 1 |
| TQW/RT/3-8/50 | 3/8 | 10–50 | 0.5 | 15.7 | 400 | 0.983 | 1 |
| TQW/RT/1-2/100 | 1/2 | 20–100 | 0.5 | 15.7 | 400 | 0.998 | 1 |
| TQW/RT/1-2/200 | 1/2 | 40–200 | 0.5 | 20.4 | 517 | 1.36 | 1 |
| TQW/RT/1-2/340 | 1/2 | 60–340 | 1 | 24.4 | 620 | 1.73 | 1 |
| TQW/RT/3-4/750 | 3/4 | 150–750 | 2.5 | 47.6 | 1210 | 5.85 | 1 |
| TQW/RT/0-1/1000 | 1 | 200–1000 | 2.5 | 59.0 | 1500 | 7.43 | 1 |
