Filter Regulator & Lubricator 2 Piece

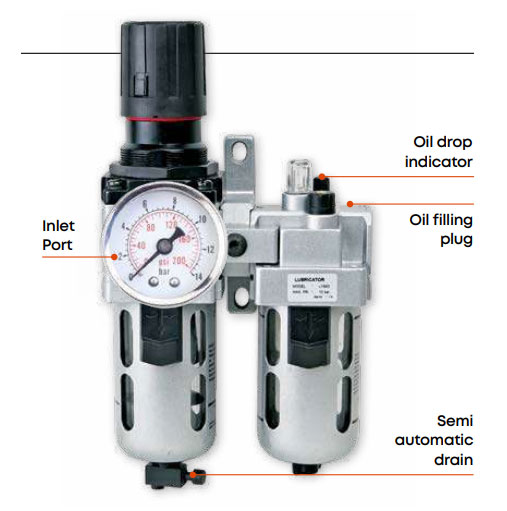

Space saving 2 pc modular filter regulator combination & lubricator Filter removes contaminants & moisture from compressed air Regulator has a non raising “Press to Lock” adjusting knob for locking at any set pressure. Lubricator feeds lubricants to air operated equipment maintaining a constant oil-to-air density over a wide range of flow Supplied complete with pressure gauge & wall mounting bracket.
ORDERING INFORMATION
| CAT NR. |
CAT NR. |
DESCRIPTION | INLET/ OUTLET PORT SIZE |
PRESSURE GAUGE PORT SIZE |
MAX. FLOW RATE |
BOX QTY. |
|---|---|---|---|---|---|---|
| WITH GAUGE | WITHOUT GAUGE | |||||
| FRCLM13613/-S/WG | FRCLM13613/-S/G | Miniature | 1/4" BSP | 1/8" BSP | 500 LPM (18 CFM) |
1 |
| FRCLM156334/-S/WG | FRCLM156334/-S/G | Standard | 1/2" BSP | 1/8" BSP | 2,800 LPM (99 CFM) |
1 |
- PRESSURE ADJUSTMENT RANGE: 7 to 145 PSI (0.5 to 10 BAR)
- FILTERING ELEMENT: Sintered Bronze (40 micron)
- DRAIN TYPE: Semi-Automatic
