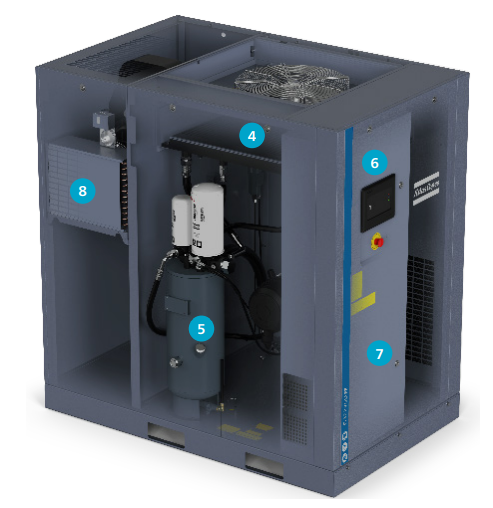

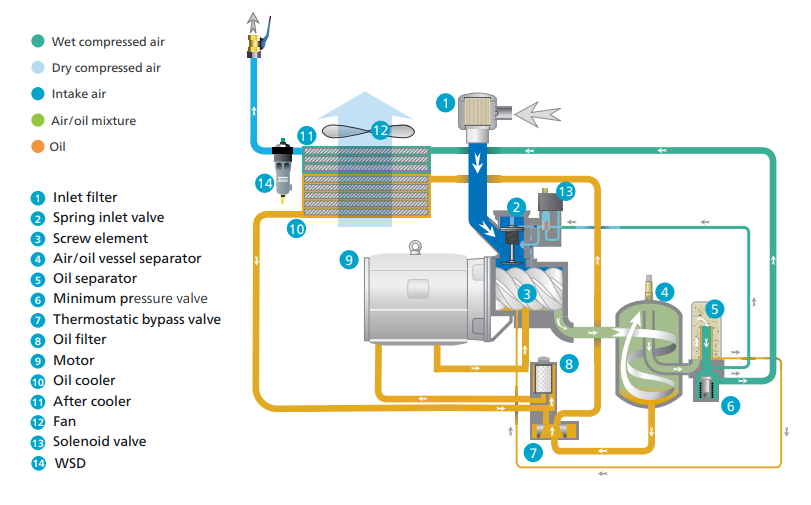

Inside the intelligent, smart GA7-22VSD

Atlas Copco’s GA7-22VSD compressors feature smart drive and intelligent control for unprecedented reliability and efficiency. We integrate Variable Speed Drive as standard, along with an Integrated Permanent Magnet motor and a unique air compressor inverter. As a result, the GA7-22VSD reduces energy consumption by an average of at least 35%, setting a new benchmark for cost savings and sustainable performance in the
compressor industry.

Very high efficiency: equalizing IE4
Compact, customized design for optimal cooling by oil
IP55 (GA7-22 VSD)
No cooling air flow required
Oil-lubricated motor

Made by Atlas Copco
Robust and silent
High efficiency

No gear or belt efficiency loss
Compact: footprint down 30%

W-fin cooler is dependable in harsh conditions
Axial fan enhances cooler performance

Integrated bypass valve with the oil filter
Easy maintenance

VSD upto 35% Energy Savings

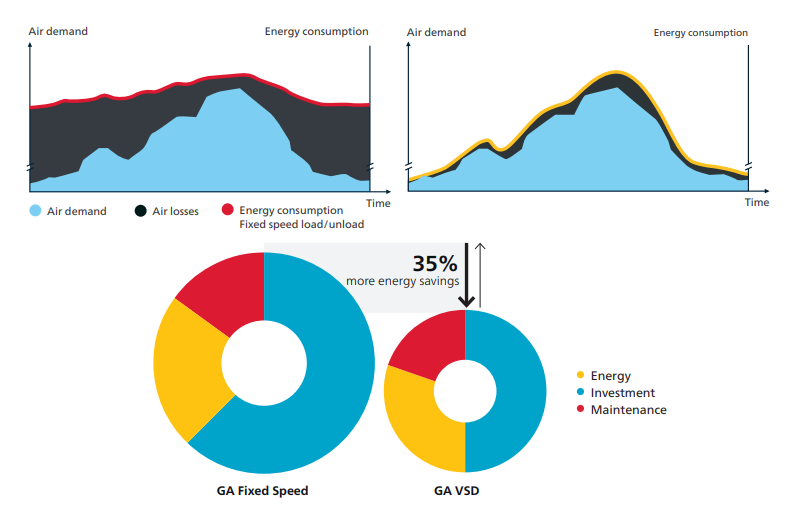

Atlas Copco’s GA Variable Speed Drive technology closely matches the air
demand by automatically adjusting the motor speed. This results in energy
savings of on average 35% compared to load/unload machines
Why choose Atlas Copco Variable Speed Drive technology?
• Integrated Elektronikon® Touch controller controls the motor speed
• Unique inverter design
• Oil cooled iPM motor means the compressor can start/stop under full system pressure without the need to unload
• Eliminates peak current penalty during start-up

In almost every production environment, air demand fluctuates depending on different factors such as the time of the day, week,
or even month. Extensive measurements and studies of compressed air demand profiles show that many compressors have
substantial variations in air demand.

Flow chart GA7-22 VSD

Compressor Type	Max. Working pressure		Capacity FAD* (min-max)			Installed motor power		Noise level** dB(A)	Weight (kg)
Compressor Type	bar(e)	psig	l/s	m³/h	cfm	kW	hp	Noise level** dB(A)	Work Place	Full Feature
50/60 Hz version
GA7 VSD	4	58	7-21	25-76	15-45	7	10	67	265	331
	7	102	7-21	25-76	15-45	7	10	67	265	331
	10	146	7-17	25-61	15-36	7	10	67	265	331
	13	181	8-14	29-50	17-30	7	10	67	265	331
GA11 VSD	4	58	7-31	25-112	15-66	11	15	67	265	331
	7	102	7-30	25-108	15-64	11	15	67	265	331
	10	146	7-26	25-94	15-55	11	15	67	265	331
	13	181	8-22	29-79	17-47	11	15	67	265	331
GA15 VSD	4	58	7-38	25-137	15-81	15	20	67	279	345
	7	102	7-37	25-133	15-78	15	20	67	279	345
	10	146	7-31	25-112	15-66	15	20	67	279	345
	13	181	8-25	29-90	17-53	15	20	67	279	345
GA18 VSD	4	58	12-57	43-205	25-121	19	25	70	425	560
	7	102	12-57	43-204	25-120	19	25	70	425	560
	10	146	10-49	38-175	22-103	19	25	70	425	560
	13	181	12-43	45-153	26-90	19	25	70	425	560
GA22 VSD	4	58	12-67	43-240	25-141	22	30	70	450	590
	7	102	12-67	43-239	25-141	22	30	70	450	590
	10	146	10-57	38-203	22-120	22	30	70	450	590
	13	181	12-50	45-180	26-106	22	30	70	450	590

* Unit performance measured according ISO 1217 ed. 4 2009, annex E, latest edition.
** Mean noise level measured at a distance of 1 m according to ISO 2151: 2004 using ISO 9614/2 (sound intensity method); tolerance 3 dB(A).
Specific operating parameters (v/s fixed speed)

FAD is measured at the following effective working pressures:

– 4 bar(e)
– 7 bar(e)
– 10 bar(e)
– 12.5 bar(e)
Maximum working pressure: 13 bar(e) (188
psig

Reference conditions:
– Absolute inlet pressure 1 bar (14.5 psi).
– Intake air temperature 20°C, 68°F.

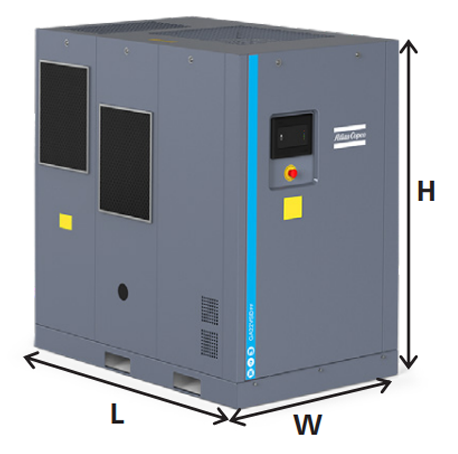

Dimensions	Standard
	L (mm)	W (mm)	H (mm)
GA 7-15 VSD Pack	765	1132	1420
GA 7-15 VSD FF	770	1510	1420
GA 18-22 VSD Pack	1080	1000	1590
GA 18-22 VSD FF	1550	1000	1590
